Model

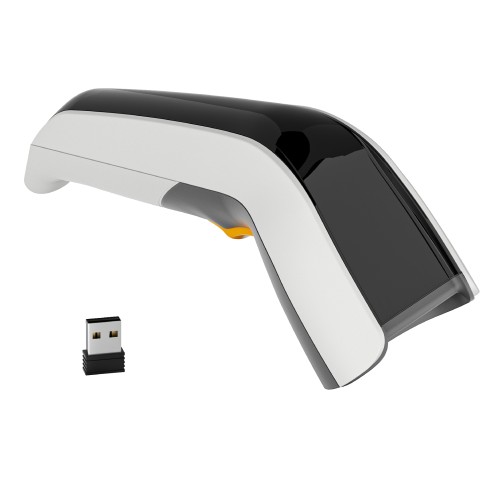

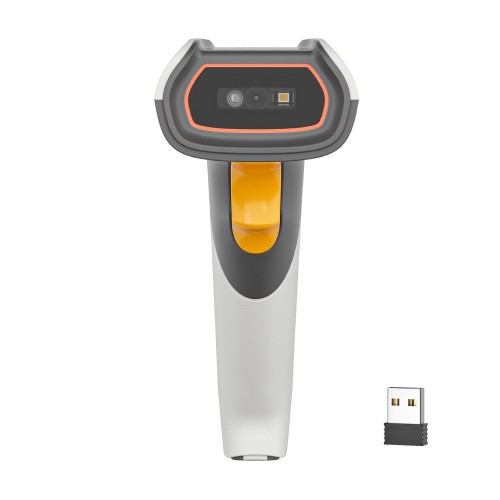

OptimX H310R

Other

Image sensor: Rolling Shutter CMOS Resolution: 1288 × 728 pixels Frame rate: up to 60 fps Field of view: 40° horizontal / 31° vertical Scanning angle: Tilt 360° / Pitch ±55° / Roll ±70° Scanning accuracy: ≥ 4 mil @ Code39 Minimum print contrast: ≥ 20% Scanning distance: 50–300 mm @ EAN-13 13 mil / 50–160 mm @ Code39 5 mil / 40–250 mm @ DataMatrix 13 mil Light source: Red LED for aiming / White LED for illumination Scan mode: Manual / Automatic Wireless connectivity: 2.4G + Bluetooth Wired connectivity: USB Type-C USB Dongle: Yes 2.4G transmission range: up to 100 m Bluetooth transmission range: up to 40 m Wireless frequency: 2.400–2.480 GHz ISM Internal memory: 380,000 bytes Offline storage: Yes Battery: 2000 mAh Autonomy: up to 12 hours of continuous scanning Standby: up to 60 days Charging time: about 5 hours Charging method: via cable Supply voltage: 5V DC ±5% Working current: 400 mA Indicator: Red, blue and green LED Feedback: buzzer + vibration Case material: ABS + PC + TPU Drop resistance: up to 1.6 m Protection degree: IP42 Operating temperature: -10°C ~ +50°C Humidity: 5%–95%, non-condensing Storage temperature: -20°C ~ +60°C Electrostatic protection: ±8 kV, direct discharge Ambient brightness: 0–100,000 Lux Firmware update: online, via computer Compatibility: Windows / iOS / Android Weight: 178.6g Dimensions: 123.16 × 60.03 × 148.79 mm Plug & Play: Yes Supported codes 1D: Codabar, Code11, Code128, ISBT128, Code32, Code39, TLC39, Code93/93i, BC412, UK Plessey, Anker Plessey, EAN-13, EAN-8, GS1, MSI Plessey, Telepen, Pharma, PatchCode, UPC-A, UPC-E, China Post, Interleaved 2 of 5, Matrix 2 of 5, NEC 2 of 5, Standard 2 of 5, IATA 2 of 5, Industrial 2 of 5 etc. 2D: Data Matrix, MaxiCode, QR, Micro QR, rMQR, Aztec Code, Han Xin, Dot Code, Grid Matrix, Codablock A, Codablock F, PDF417, Micro PDF417, OCR-A/B. Postal codes: China Post, Korea Post, Australia Postal, Royal INFOMAIL, Japan Postal, KIX, PLANETCODE, POSTNET, Britain Postal, UPU, USPS 4STATE.

Connectivity

2.4G + Bluetooth + USB Type-C

Color

White/Grey

Scanner type

1D / 2D / QR Code

Package Contents

OptimX H310R Reader + Charging Cable + USB Dongle
