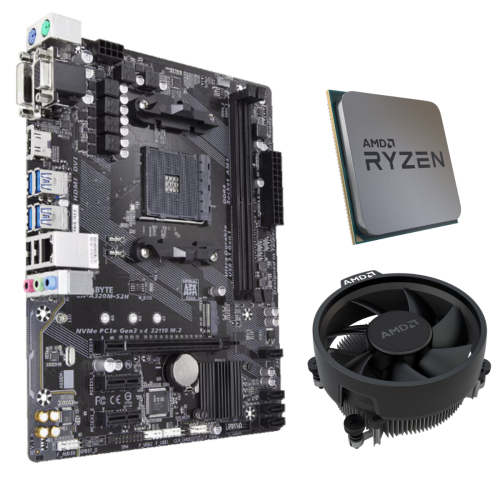

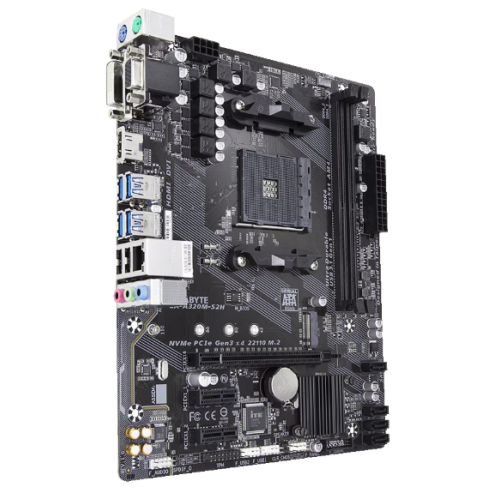

Component Type

Motherboards

Supported processors

AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processor

Chipset

AMD A320

Socket

AM4

Processor Included

AMD Ryzen™ 3 3200G with Radeon™ Vega 8 Graphics, 4 cores, 3.6 - 4.00 GHz

Cooler included

AMD Wraith Stealth

Video OnBoard

Radeon™ Vega 8 Graphics

RAM Type

2 DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual-channel memory architecture Support for DDR4 3200(OC)/2933(OC)/2667*/2400/2133 MHz memory modules *Actual support may vary depending on processor. Support for 1Rx8/2Rx8 unbuffered ECC DIMMs (operates in non-ECC mode) Support for 1Rx8/2Rx8/1Rx16 unbuffered non-ECC DIMM memory modules Support for Extreme Memory Profile (XMP) memory modules

Format/Size

mATX, 24.4cm x 19.5cm

Network card model:

Realtek® GbE LAN chip (10/100/1000 Mbit)

Features

Audio Features Realtek® audio CODEC High-definition audio 2/4/5.1/7.1 channels * To configure 7.1 channel audio, you need to open your audio software and select Advanced Device Settings > Playback Device to change the default setting first. Please visit the GIGABYTE website for details on configuring your audio software. S/PDIF output support Expansion slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)* *Actual support may vary depending on processor. (The PCIEX16 slot complies with the PCI Express 3.0 standard.) 2 x PCI Express x1 slots (PCI Express x1 slots comply with the PCI Express 2.0 standard.) Storage interface 1 x M.2 connector (Socket 3, Key M, Type 2242/2260/2280/22110 SATA and PCIe x4/x2 (Note) SSD support) *Actual support may vary depending on processor. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1 and RAID 10 * See "Internal Connectors 1-7" for installation notices for the M.2 connector. (Note) Only supports M.2 SATA SSDs when using a 7th Generation AMD Athlon™ Series/A-Series or Athlon™ X4 APU. USB Chipset: 2 x USB 3.1 Gen 1 ports available via internal USB connector 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available via internal USB connectors) CPU: 4 x USB 3.1 Gen 1 ports on the back panel Internal I/O connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan connector 1 x system fan connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel connector 1 x front panel audio connector 1 x S/PDIF output connector 1 x USB 3.1 Gen 1 connector 2 x USB 2.0/1.1 connectors 1 x Trusted Platform Module (TPM) connector (2x10-pin, for GC-TPM2.0 module only) 1 x speaker connector 1 x Clear CMOS jumper 1 x chassis intrusion header Rear panel connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (line in, line out, microphone in) I/O controller iTE® I/O controller chip Hardware monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan failure warning Fan speed control * Fan speed control function is supported depending on the installed cooler. BIOS 1 x 128 Mbit flash memory Using licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
